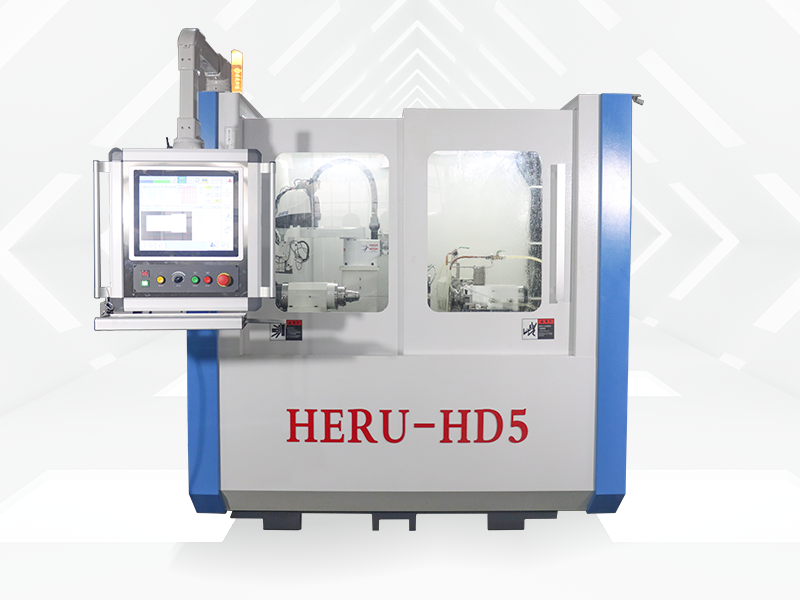

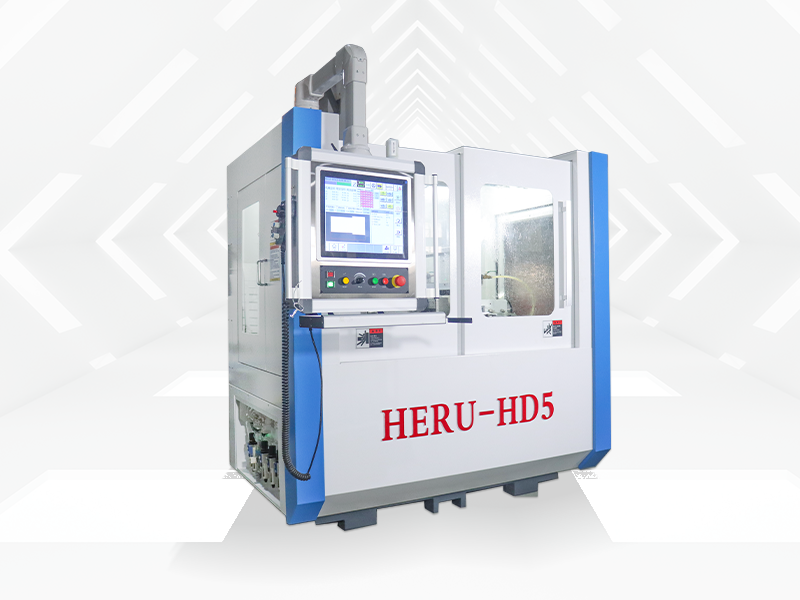

The newly designed HD5 step differential grinding machine equipment adopts the latest industrial numerical control system, integrating high-precision work heads, high-speed motorized spindles, dual-sandwheel synchronous high-speed grinding technologies, etc. It is widely applied in the pre-processing of milling cutters, drills, reamers and various high-precision cutting tools.
The grinding process using coarse and fine double abrasive wheels ensures product accuracy.；
The self-developed simulation processing software can achieve rapidity, flexibility and customization.；
Workpiece dimensions：
Maximum grinding length ： 280 mm
Grinding diameter： 0.1 -20 mm
Clamping diameter ： 0.5 -20 mm
Mechanical hand：SCARA - 4 Joint
Numerical Control System：New Generation
Coarse grinding wheel 250*20*31.75mm
Precision grinding wheel
150*20*31.75mm
| Project | Detailed Information | |
|---|---|---|
| Processing Range | Machinable / Clamping Dimensions (The grinding dimensions will vary depending on the tool type and grinding process) | Grinding Maximum Length: 280mm |
| Grinding Diameter: 0.1 - 2mm | ||
| Clamping Diameter: 0.5 - 20mm | ||
|
|
Control System | New Generation |

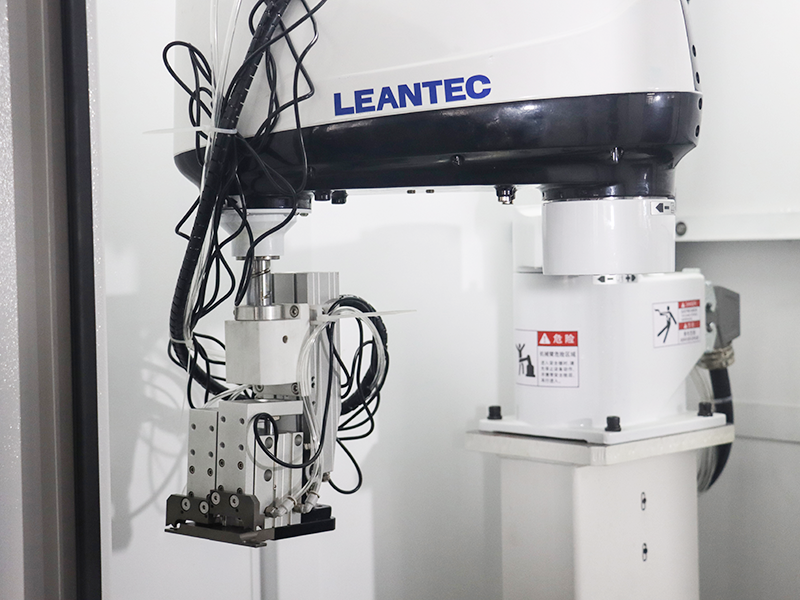

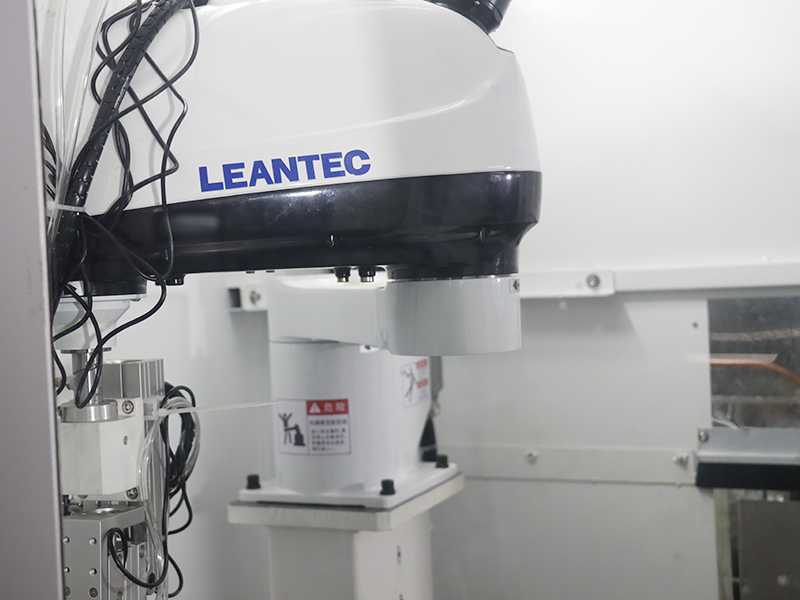

| Manipulator | SCARA - 4 Joints | |
| Measurement Length Mode Adaptation | Infrared Measurement / Mechanical Probe Measurement | |
| Product Precision | When measuring grinding, excluding objective factors such as grinding wheel wear and powder generated by workpiece grinding |
Product Precision: ≤ 0.005mm Circularity: ± 0.002mm Taper: ± 0.002mm |
| Rough Grinding | Grinding Wheel Dimensions | 250 * 20 * 31.75mm |
| Grinding Wheel Speed | 0 - 9000 (Electric Spindle) | |
| Maximum Grinding Wheel Linear Speed | 90m/s | |
| Grinding Wheel Spindle Motor | 12.5KW | |
| Fine Grinding | Grinding Wheel Dimensions | 150 * 20 * 31.75mm |
| Grinding Wheel Speed | 0 - 12000 (Electric Spindle) | |
| Maximum Grinding Wheel Linear Speed | 90m/s | |
| Grinding Wheel Spindle Motor | 3.5KW | |
| Minimum Feed of X1/X2/Z1/Z2 Axes | 0.001mm | |
| Stroke | X1 Axis | 60mm |
| X2 Axis | 60mm | |
| Z1 Axis | 330mm | |
| Z2 Axis | 100mm | |
|
|
Servo Motors of X1/X2/Z1/Z2 Axes | 1.1KW |

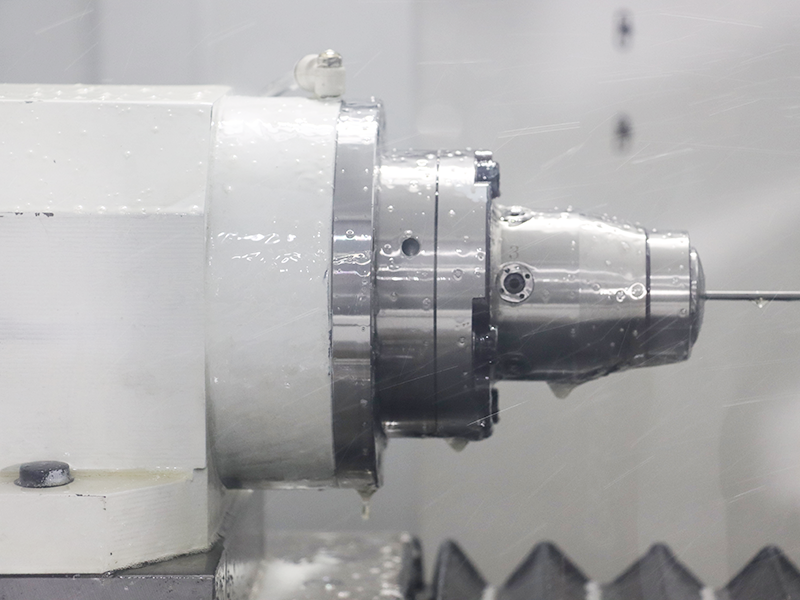

| Workpiece Spindle Motor | 2KW | |
| Workpiece Spindle Speed | 0 - 5000rpm | |
| Others | Gross Weight (Approximate) | 3500KG |
| Overall Dimensions (Length * Width * Height) | 2100 * 1800 * 2300mm | |
