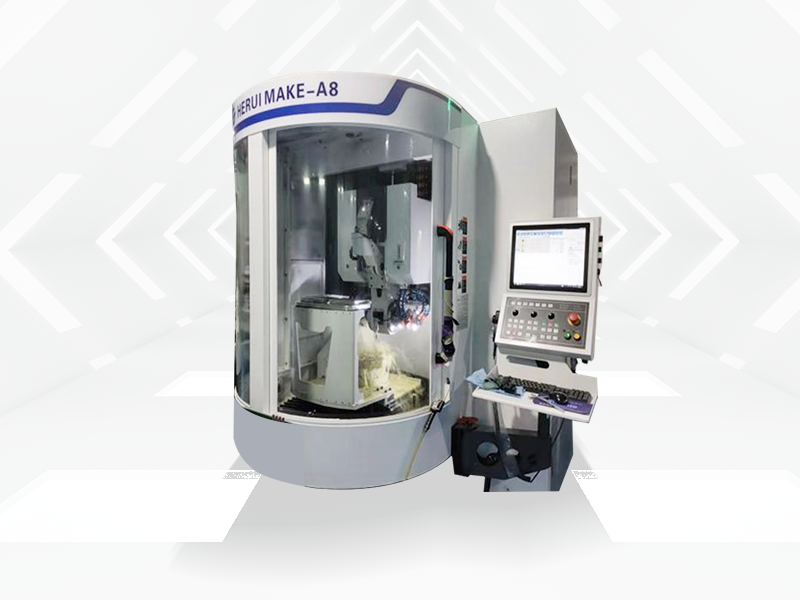

The GV5 series products are a result of integrating the design concepts of various grinding centers from Europe and America, as well as the excellent machine structure. After years of user experience and application, they have been optimized and finalized for production as a high-speed and high-precision CNC tool grinding center machine. It is a benchmark model in the domestic tool grinding machine industry. It is suitable for efficient grinding processing of various tool materials such as high-speed steel and cemented carbide. It can widely meet the needs of tool processing and tool repair in various industries such as automobiles, electronics, home appliances, aerospace, molds, and instruments and meters.
The GV5 series high-power bed is made of integral gray cast iron. Combined with the large-column integrated bed, it undergoes multi-directional aging treatment before high-precision processing. The guide surfaces are machined by imported guide rail grinding machines, and the overall surface finish is finely processed. The overall accuracy is controlled within 0.005U.
HoweverGrindingSize (The grinding size may vary depending on the type of cutting tool and the grinding process.)
Maximum length：200mm
Maximum diameter：200mm
X-axis fast-forward speed：10000mm/min
Speed of Y-axis fast-forwarding：10000mm/min
The speed of Z-axis fast forward movement：10000mm/min
The fast-forward speed of Axis A：200rpm/min
C-axis rapid feed rate：60rpm/min.
Output power (30 minutes/continuous)：15KW
Spindle taper hole ISO: BT50 automatic jaw clamp
Spindle speed：6000rpm/min
The water tank has a capacity of 360L (optional)
Positioning accuracy：士0.003mm
Repeatability of positioning accuracy：士0.002mm
The accuracy of the conical hole in the grinding wheel：士0.002mm
The precision of the taper hole of the work shaft：士0.002mm
X-axis travel：430mm
Y-axis travel：740mm
Z-axis travel：310mm
A-axis stroke (DD direct drive)：0-360度
C-axis travel (DD travel)：0-210度
Power source (continuous) 27KVA
floor area： 2000(L)X2400(W)X2000(H)
The weight of the machine tool： 5600Kg
Power requirements： 3相380V+10%-15%
Environmental humidity： 5-10°℃
Relative environmental humidity： ≤75%
| Serial Number | Content | Quantity |
|---|---|---|
| 1 | Workpiece Cooling System | 1 |
| 2 | Full Protection System | 1 |
| 3 | Work Lamp | 1 |
| 4 | A Set of Manuals | 1 |
| 5 | A Set of Adjustment Tools | 1 |
| 6 | Foundation Kit (Tower - type) | 1 |
| 7 | Core of New Generation Five - axis Linkage CNC System from Taiwan | 1 |
| 8 | Transformer | 1 |
| 9 | Pneumatic - hydraulic Chucking and Releasing Device for Grinding Wheel Shaft | 1 |
| 10 | Spindle Motor AC 11KW | 1 |
| 11 | Schneider - Omron Electrical Control Components | 1 |
| 12 | Environmental - friendly Accessories: Oil Mist Separator | 1 |
| 13 | Automatic Fire Detection and Extinguishing Device | 1 |
| 14 | Background Tool Path Inspection | 1 |
| 15 | Hiwin High - precision Linear Guideways and Lead Screws from Taiwan, NSK/TNT Lead Screw Bearings | 1 |
| 16 | Software (Open - type System): Can Install Multiple Special Tool Software | 1 |
| 17 | USB Interface | 1 |
| 18 | Network Interface | 1 |
| 19 | Automatic Workpiece Measuring Device | 1 |
| 20 | Three - color Lamp | 1 |
| 21 | Automatic Components | 1 |
| 22 | Automatic Timed and Quantitative Oil Injection System | 1 |
| 23 | 15 - inch Color LCD | 1 |
| 24 | Spindle (Speed 6000 RPM) | 1 |
| 25 | Axial Motor: Yaskawa Servo Motor from Japan | 1 |
| 26 | Measuring Axis: Ruby / Alloy Probe | 1 |
| 27 | High - efficiency Coolant Oil Filter | 1 |
| 28 | 1KW Cooling System | 1 |
| 29 | User Macro: 600 Sets of General Variables | 1 |
| 30 | G93 Grinding Function | 1 |
| 31 | Workpiece Rotary Axis (A/C - axis): Direct - drive Motor with Renishaw Circular Grating | 1 |
| 32 | Z - axis Pneumatic Balance Mechanism | 1 |
