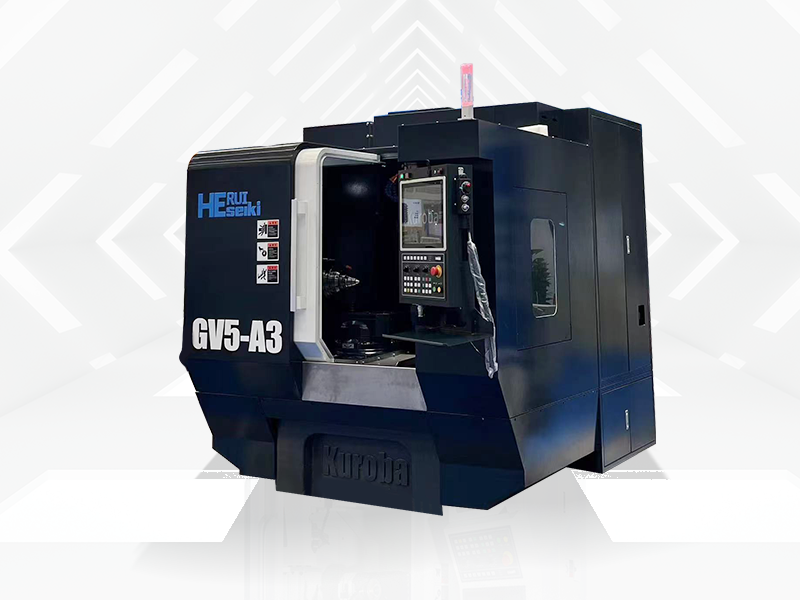

The GV5 series products are a result of integrating the design concepts of various grinding centers from Europe and America, as well as the excellent machine structure. After years of user experience and application, they have been optimized and finalized for production as a high-speed and high-precision CNC grinding center machine. It is a benchmark model in the domestic tool grinding machine industry. It is suitable for efficient grinding processing of various tool materials such as high-speed steel and cemented carbide. It can widely meet the needs of tool processing and tool repair in various industries such as automobiles, electronics, home appliances, aerospace, molds, and instruments and meters.
The GV5 series high-power bed is made of integral gray cast iron. Combined with the large-column integrated bed, it undergoes multi-directional aging treatment before high-precision processing. The guide surfaces are machined by imported guide rail grinding machines, and the overall surface finish is finely processed. The overall accuracy is controlled within 0.005U.
By adopting German INA;P grade high-precision ball linear guides, high rigidity, high speed, durability and long service life can be achieved simultaneously. At the same time, repeat high-speed positioning is guaranteed, thereby bringing about long-term high reliability processing and maintenance-free operation. Double nut lead screws of C3 level or above can adjust for micro-gap.
The spindle adopts a Taiwan-made high-power, high-torque, high-speed and high-precision direct-connected spindle with no vibration, no transmission noise and no torque loss. It can meet the requirements of high-speed and precise grinding processing of small-diameter cutting tools as well as large-torque slotting and integrated forming processing of medium-sized and special-shaped cutting tools, ensuring good processing accuracy and efficiency.
By adopting German INA;P grade high-precision ball linear guides, high rigidity, high speed, durability and long service life can be achieved simultaneously. At the same time, repeat high-speed positioning is guaranteed, thereby bringing about long-term high reliability processing and maintenance-free operation. Double nut lead screws of C3 level or above are used to realize adjustable micro-gap.
Use large-power servo motors from Yaskawa of Japan
Employing imported direct-drive torque motors, imported heavy-duty slewing bearings, and British Renishaw grating sensors, a fully closed-loop control system is achieved.
HoweverGrindingSize (The grinding size may vary depending on the type of cutting tool and the grinding process.)
HoweverGrindingSize (The grinding size may vary depending on the type of cutting tool and the grinding process.)
Positioning accuracy：士0.003mm
Repeatability of positioning accuracy：士0.002mm
The accuracy of the conical hole in the grinding wheel：士0.002mm
The precision of the taper hole of the work shaft：士0.002mm
X-axis travel：390mm
Y-axis travel：300mm
Z-axis travel：280mm
A-axis stroke (DD direct drive)：0-360°
C-axis travel (DD travel)：0-200° + 200
