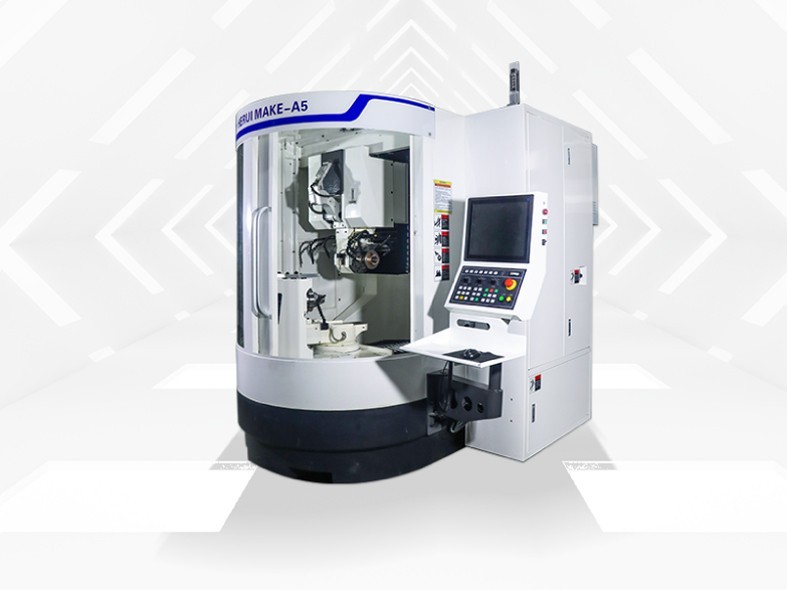

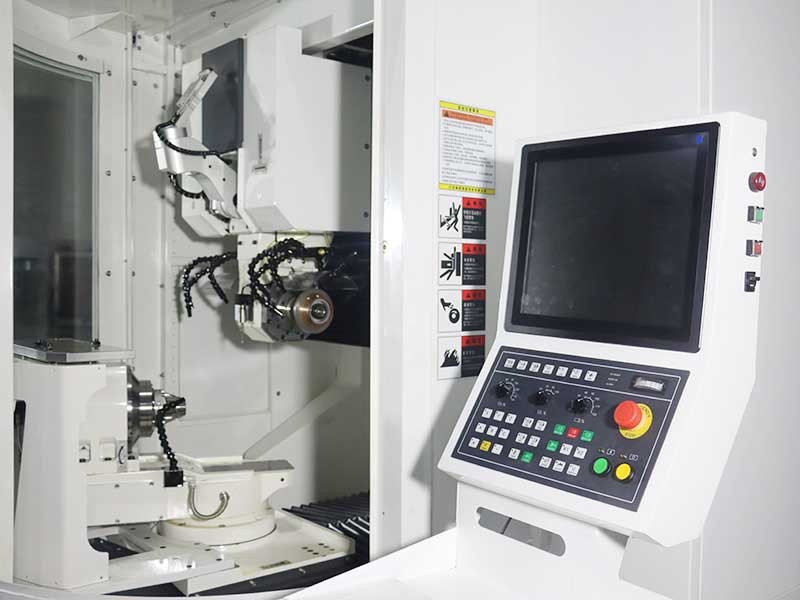

The GV5 series products are a comprehensive integration of the design concepts of various grinding centers in Europe and America, as well as excellent machine structures. After years of user experience and application, they have been optimized and finalized for production as a high-speed and high-precision CNC tool grinding center machine. It is a benchmark model in the domestic tool grinding machine industry. It is suitable for efficient grinding processing of various tool materials such as high-speed steel and cemented carbide. It can widely meet the needs of tool processing and tool repair in various industries such as automobiles, electronics, home appliances, aerospace, molds, and instruments and meters.
The GV5 series high-power bed is made of integral gray cast iron. Combined with the large-column integrated bed, it undergoes multi-directional aging treatment before high-precision processing. The guide surfaces are machined by imported guide rail grinding machines, and the overall surface finish is finely processed. The overall accuracy is controlled within 0.005U.
HoweverGrindingSize (The grinding size may vary depending on the type of cutting tool and the grinding process.)
By adopting German INA;P grade high-precision ball linear guides, high rigidity, high speed, durability and long service life can be achieved simultaneously. At the same time, repeat high-speed positioning is guaranteed, thereby bringing about long-term high reliability processing and maintenance-free operation. Double nut lead screws of C3 level or above can adjust for micro-gap.
Use large-power servo motors from Yaskawa of Japan
Maximum length：200mm
Maximum diameter：0.5-12mm

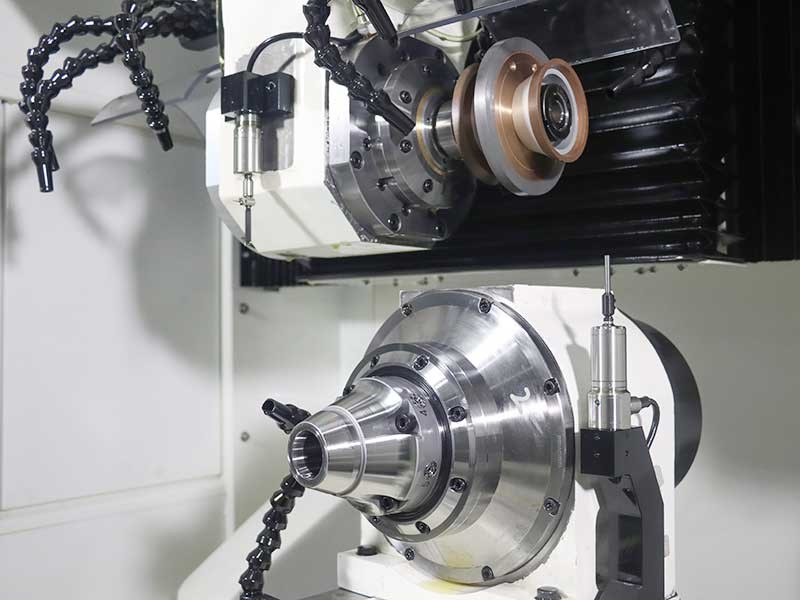

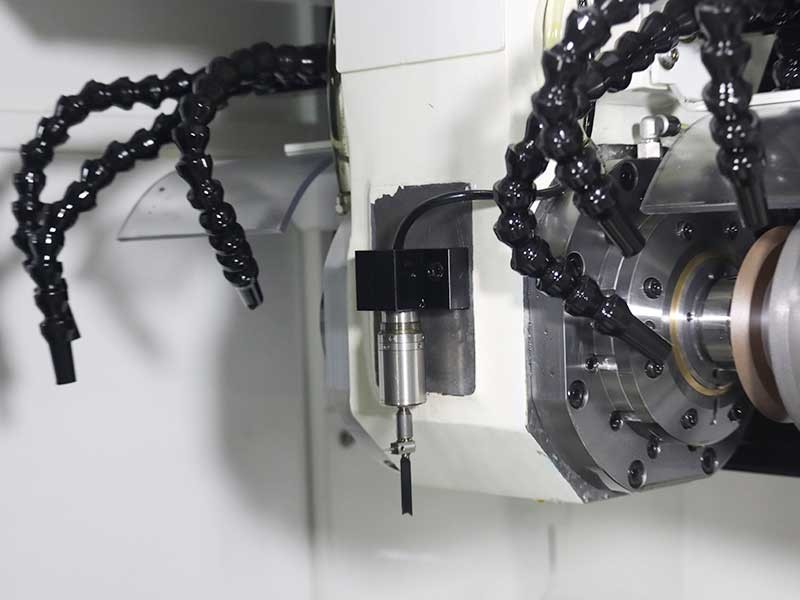

Employing imported direct-drive torque motors, imported heavy-duty rotary table bearings, and British Renishaw grating sensors, a fully closed-loop control system is achieved.
HoweverGrindingSize (The grinding size may vary depending on the type of cutting tool and the grinding process.)
Maximum length：200mm
Maximum diameter：0.5-12mm
Positioning accuracy：士0.003mm
Repeatability of positioning accuracy：士0.002mm
The accuracy of the conical hole in the grinding wheel：士0.002mm
The precision of the taper hole of the work shaft：士0.002mm
X-axis travel：400mm
Y-axis travel：300mm
Z-axis travel：265mm
A-axis stroke (DD direct drive)：0-360度
C-axis travel (DD travel)：0-200度
Power source：20KW Spindle interfaceHSK40F
floor area: 2000(L)X2400(W)X2000(H)
The weight of the machine tool: 5600Kg
Power requirements: 3appearance of380V+10%--15%
Environmental humidity: 5-36°℃
